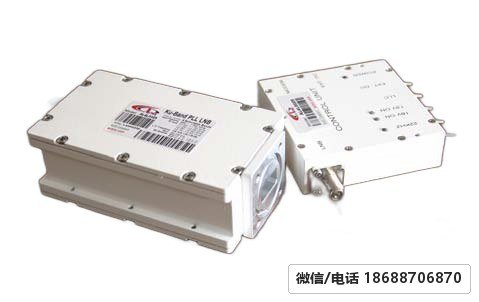

Actox AL4L0010N – 10 KHz stability 4-L.O. Ku-Band PLL LNB, N-Type

Actox AL4L0010N – 10 KHz stability 4-L.O. Ku-Band PLL LNB

This unit features:

Output frequency 10.70-12.75 GHz

+/- 10 kHz Stability

Noise figure 0.8 dB typ.

RoHS compliant

Three year warranty

Model

RF Frequency

Local Frequency

IF Frequency

IF Connector

AL4L0010N

10.7-12.75GHz

9.75 / 10 / 10.75 /11.30 GHz

950 to 2,000 MHz

N-Type

Parameter

Value

Frequency band

10.70 to 12.75 GHz

Input waveguide flange

WR 75 (Grooved)

IF frequency

950-2000 MHz

Conversion gain

60 dB typ.

Gain variation

1 dB p-p within 36 MHz & 5 dB p-p all band

Output V.S.W.R.

1.5:1 max.

Current

350 mA max.

Phase noise

-70 dBc/Hz @ 1 KHz

-80 dBc/Hz @ 10 KHz

-95 dBc/Hz @ 100 KHz

-115 dBc over 1 MHz

Operating temperature

-40 to +60 C

Storage temperature

-40 to +80 C

Dimensions (mm)

115.5 x 60 x 41.6 mm

Weight (g)

400 g

Key Specifications

Frequency band	10.70 to 12.75 GHz
Input waveguide flange	WR 75 (Grooved)
IF frequency	950-2000 MHz
Conversion gain	60 dB typ.
Gain variation	1 dB p-p within 36 MHz & 5 dB p-p all band
Output V.S.W.R.	1.5:1 max.
Current	350 mA max.
Phase noise	-70 dBc/Hz @ 1 KHz -80 dBc/Hz @ 10 KHz -95 dBc/Hz @ 100 KHz -115 dBc over 1 MHz
Operating temperature	-40 to +60 C
Storage temperature	-40 to +80 C
Dimensions (mm)	115.5 x 60 x 41.6 mm
Weight (g)	400 g

Documents

• Datasheet / User Manual
