Actox AL1XN

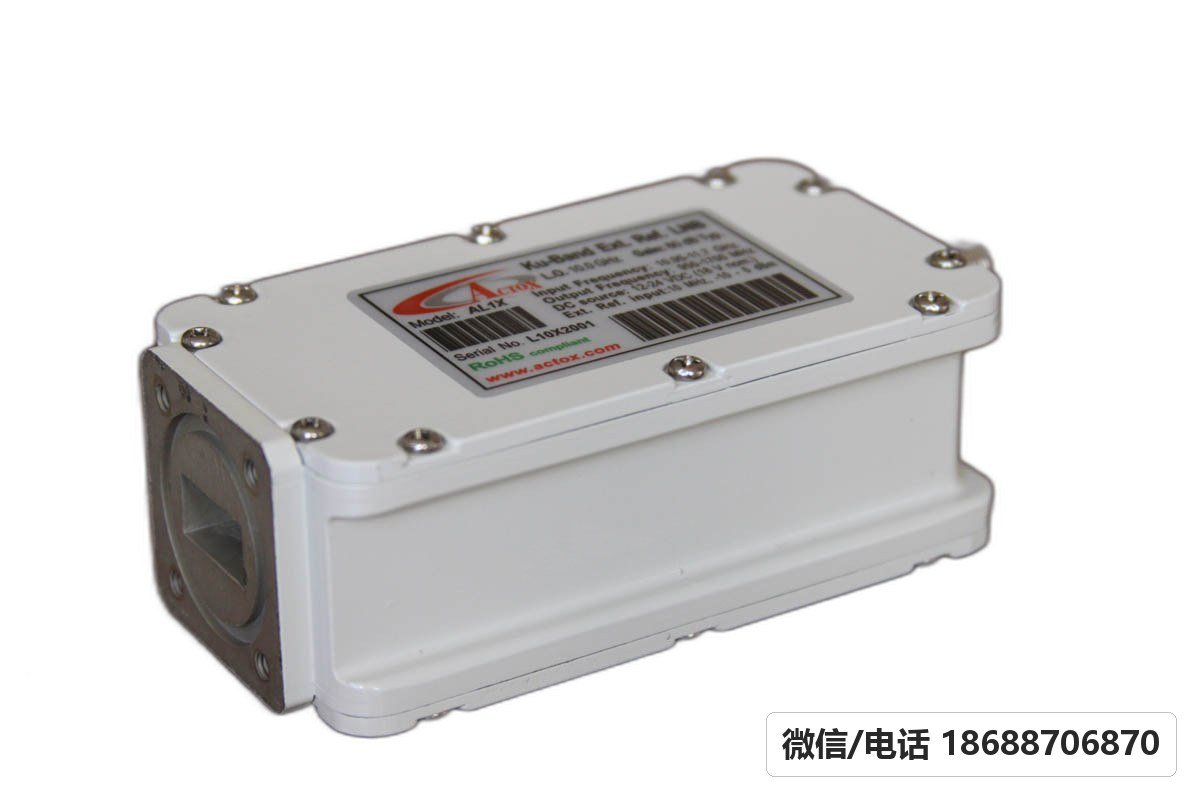

Actox AL1XN – Actox Ext. Ref. Ku-Band LNB

This unit is a low noise amplifier and a block down converter (external reference) for use in KU-Band VSAT remote RF terminals.

KEY FEATURES

External reference

Smallest package size and weight

N / F connector options (50/75 ohms)

RoHS compliant

Three year warranty

Model

RF Frequency

Local Frequency

Local Stability

IF Frequency

IF Connector

AL1X

10.95 to 11.7 GHz

10.00 GHz

Depends on external reference

950 to 1,700 MHz

N-type

Parameter

Value

Frequency band

10.95 to 11.70 GHz

Input waveguide flange

WR 75 (Grooved)

Input V.S.W.R.

2.5:1 typ.

Noise figure (Ta=+25 C)

0.8 – 0.9 dB max.

Output frequency

950 to 1450 MHz

Conversion gain

55 dB typ. @ +25C60 dB typ.

Conversion gain variation (Ta=+25C)

2 dB max. in any 50 MHz segment over frequency band

IM3

45 dBc min.

Local oscillator frequency stability (Ta= -40 to +60 C)

10.00 GHz nom.

Image rejection

45 dB min.

Output V.S.W.R.

2.5:1 max.

Power requirement

+12 to +24 V

Current

280 mA max.

Phase noise

-75 dBc/Hz @ 100 Hz-80 dBc/Hz @ 1 KHz-90 dBc/Hz @ 10 KHz-110 dBc/Hz @100 KHz*Depend on phase noise of the external reference.

Operating temperature range

-40 to +60 C

Storage temperature

-50 to +80 C

Humidity

100 %Rh (max)

Vibration

G=5 (f=50±2Hz, t=5 min, direction; X,Y,Z)

Shock

G=15 (direction; X,Y,Z)

RF input power

-10 dBm (@ CW)

Supply voltage

+24 VDC

Key Specifications

AL1X	10.95 to 11.7 GHz 10.00 GHz Depends on external reference 950 to 1,700 MHz N-type

Documents

• Datasheet / User Manual
