Description

I. Product Overview
The **Digital SDI Signal Distributor**, independently developed by Shenzhen Huashi Digital Technology Co., Ltd., is an industrial-grade device designed for efficient sharing of high-definition and standard-definition video signals. This device can accurately distribute any single high-definition/standard-definition 3G/12G SDI serial digital video signal to multiple output ports in a **lossless, delay-free, and high-fidelity** manner, synchronously outputting to multiple high-definition TVs, projectors, or large-screen display devices. It is ideal for multi-user collaborative viewing scenarios such as command centers, studios, monitoring halls, and exhibition displays, perfectly addressing the need for synchronized signal sharing across multiple terminals. The distributor ensures that all terminal displays receive visuals identical to the source signal—**without delay, attenuation, or distortion**.

Key Features:
1. **Automatic Input Recognition**: Supports automatic detection of 3G/HD/SD/ASI input signals—no manual selection required.
2. **Comprehensive Standard Compliance**: Meets SMPTE424M, SMPTE292M, SMPTE259M, SMPTE297M, SMPTE305M, and SMPTE310M standards; also compliant with DVB-ASI (EN50083-9) standards.
3. **Adaptive Rate Support**: Automatically adapts to SDI rates including 143M, 177M, 270M, 360M, 540M, 1483.5M, 1485M, and 2970Mbps.
4. **Single-to-Multi Distribution**: Supports 1 SDI/ASI input, distributing to 8 identical SDI/ASI outputs.
5. **Built-in Signal Optimization**: Input features automatic cable equalization to compensate for transmission losses over cables.
6. **Eco-Friendly Design**: Lead-free PCB design for environmental safety.
7. **Premium Components**: All components, including connectors, are sourced from internationally renowned manufacturers to ensure reliability.
8. **Durable Housing**: Aluminum alloy casing offers a sleek, lightweight, and professional appearance.
9. **Redundant Power Supply**: Dual-switching power design with a wide voltage range ensures long-term stable operation.

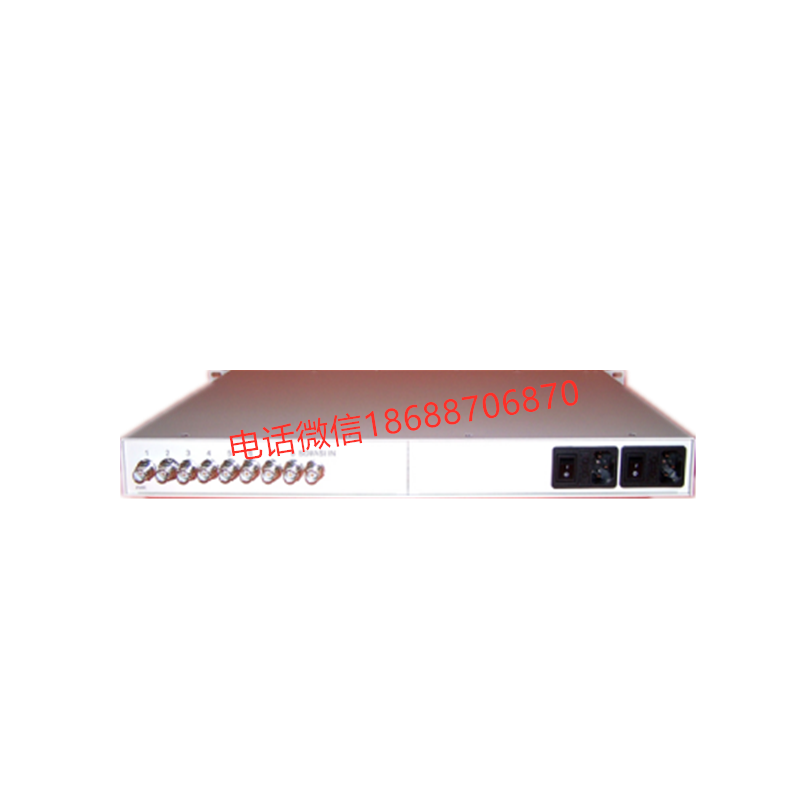

10. **Flexible Installation**: Available in 19-inch 1U standard chassis or compact mini chassis designs, providing versatile installation options.

—

II. Core Advantages & Technical Highlights**
This product integrates industrial-grade reliability with cutting-edge video processing technology, delivering comprehensive performance in signal integrity, environmental adaptability, and operational convenience to meet the demanding requirements of professional scenarios:

1. Intelligent Monitoring & Flexible Scalability**
– **Dual Independent Detection**: Each power and signal channel is equipped with independent monitoring modules for real-time status tracking and rapid issue localization.
– **Multi-Output Coverage**: Supports flexible output configurations of 1/2/4/8/16/32/64 channels, suitable for projects ranging from small-scale to large-scale deployments.

2. Universal Format Compatibility & Adaptive Processing**
– **Broad Standard Support**: Compatible with SDI signal distribution, automatically recognizing standard-definition (SD), high-definition (HD), and 3G signals (including mainstream resolutions like 480i, 576i, 720p50/60Hz, 1080i50/60Hz, and 1080p25/30/50/60Hz)—no manual configuration needed.
– **Intelligent Signal Optimization**: Built-in adaptive equalizers and clock recovery modules, combined with low-jitter delay processing technology, effectively compensate for signal attenuation and distortion during long-distance transmission, ensuring stable and clear output visuals.

3. Industrial-Grade Reliability**
– **Multi-Layer Protection**: Each input/output channel includes independent lightning protection modules, paired with professional-grade wide-voltage power supplies and anti-electromagnetic interference (EMI) circuit designs to resist lightning strikes, surges, and EMI, guaranteeing stable communication quality.
– **Wide-Temperature & Humidity Adaptation**: Utilizes industrial-grade chips and full-surface mount technology (SMT), supporting operating temperatures from -40°C to 80°C and humidity levels of 0%–90% (non-condensing), ensuring performance in extreme environments.

4. High-Performance Transmission & Lossless Distribution**
– **Lossless Technology**: Based on full-digital, uncompressed transmission principles, combined with long-line gain technology and distortion compensation algorithms, ensuring signal integrity remains uncompromised even over extended distances.
– **Professional Transmission Optimization**: Features full SMT process and video circuit noise-reduction design, alongside digital synchronization recognition technology, delivering output images with rich detail and accurate color reproduction—visually indistinguishable from the source.
– **Real-Time Status Visibility**: Equipped with LED indicators to display the operational status of each output channel, power supply, and video link for intuitive maintenance and management.

5. User-Centric Design**
– **Plug-and-Play**: Supports automatic input signal recognition technology—no complex software setup required; ready for use immediately after power-on.
– **Standard Rack Installation**: Designed in a standard 19-inch rack-mountable chassis (specific dimensions provided in technical specifications), enabling seamless integration into existing control desks or cabinets for space efficiency and a neat appearance.

—

III. 3G-SDI Technical Specifications (Example: 1-to-8 Model ZH-SDIF0108)**

| **Parameter** | **Details** |
|———————–|—————————————————————————–|
| **Product Model** | ZH-SDIF0108 (1 input, 8 outputs) |
| **Input Signal** | 1×BNC SDI interface |
| **Supported Input Formats** | 480i, 576i, 720p (50/60Hz), 1080i (50/60Hz), 1080p (25/30/50/60Hz) |
| **Output Signal** | 8×BNC SDI interfaces |
| **Supported Output Formats** | Same as input formats (fully compatible with 480i to 1080p) |
| **Supported Rates** | 270Mbps – 2.97Gbps (covers standard-definition to 3G-SDI rate ranges) |
| **Interface Impedance** | 75Ω standard impedance for both input and output |
| **SDI Coupling Type** | AC coupling |
| **Signal Jitter Control** | SD-SDI <0.1UI / HD-SDI <0.2UI / 3G-SDI <0.1UI (strictly meets broadcast-grade standards) |
| **Transparent Data Transmission** | Embedded audio, auxiliary data space, and EDH (Error Detection and Handling) data are fully preserved without modification |
| **Operating Temperature** | -40°C ~ +80°C (industrial-grade wide-temperature design for extreme cold/hot environments) |
| **Operating Humidity** | 0% ~ 90% (non-condensing) |
| **Protection Rating** | Complies with general industrial standards (dustproof, splash-resistant, structurally robust) |
| **Device Dimensions** | 484mm (W) × 300mm (D) × 45mm (H) |
| **Power Supply** | AC 220V (dual-redundant power design for uninterrupted operation) |
| **Total Power Consumption** | ≤30W (low energy consumption, environmentally friendly) |

—

Summary
The Huashi Digital SDI Distributor centers on **stability, efficiency, and lossless performance**, leveraging end-to-end technical optimization and industrial-grade protective design to deliver a reliable solution for professional video signal sharing. Whether for multi-screen synchronization in small meeting rooms or cross-terminal image distribution in large command centers, it is an indispensable core device for high-definition video system construction.
