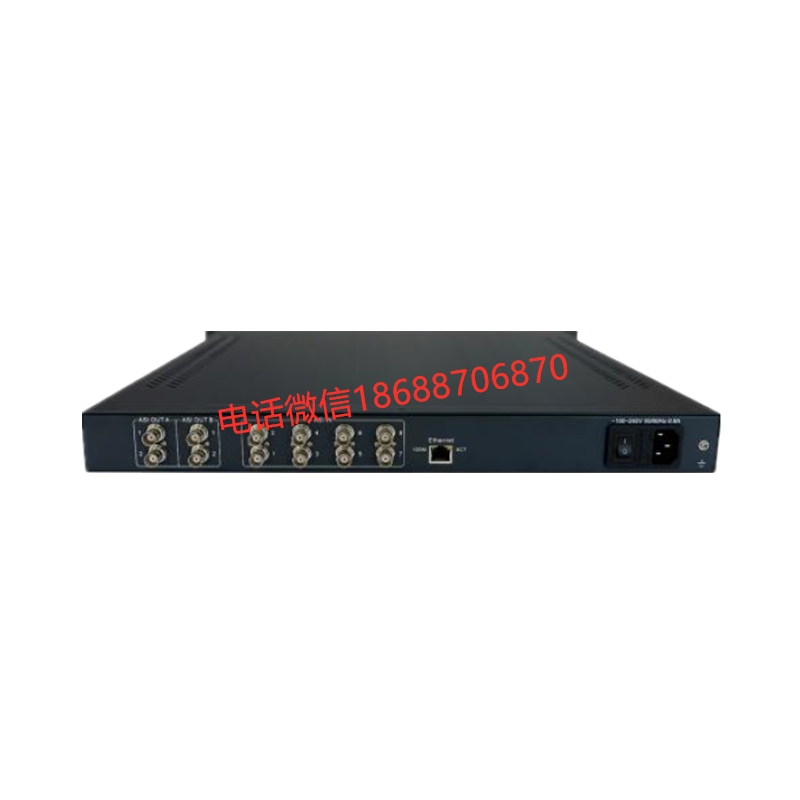

PDA9908E 8路ASI复用器 PACIFIC DVB Stream Multiplexer – 8-Channel ASI Multiplexer

Description

Broadcast-Grade Professional DVB Stream Multiplexer – 8-Channel ASI Multiplexer PACIFIC​
The ​Huashi PACIFIC PDA9908E​ is a professional broadcast-grade DVB-TS stream multiplexer primarily designed for digital television systems. It supports applications across all DVB-S/T/C digital headend systems. Featuring ​8 ASI input interfaces​ and ​2 groups of ASI output interfaces, it can process ​8 MPTS (Multi-Program Transport Streams) or SPTS (Single-Program Transport Streams)​​ and generate a unified MPTS. The device supports the multiplexing of ​256 PIDs (Packet Identifiers) or 50 programs, along with the mapping, transparent transmission, filtering, insertion, and generation of ​PSI/SI (Program Specific Information/Service Information) tables.

As an ​ASI stream multiplexer, it enables flexible multiplexing of the 8 input ASI streams to the output channels, allowing ​arbitrary reconfiguration of program names, program numbers, and PIDs. The input stream bitrate can reach up to ​270Mbps, while the output bitrate supports up to ​160Mbps. It also supports ​EPG (Electronic Program Guide) insertion, PSI editing, and NIT (Network Information Table) table insertion, making it one of the core devices in cable digital TV headends.

Designed as a ​1U rack-mounted multiplexer​ with a ​19″ standard cabinet installation, the PDA9908E delivers powerful processing capabilities for multiplexing multiple TS streams. Its standardized ASI interfaces ensure reliable stability and high performance, making it an ideal choice for multiplexing and processing digital audio-video stream signals.

​Key Features & Technical Highlights​

• ​Compliance & Standards: Fully compliant with ​ISO13818​ and ​EN300 468​ standards.
• ​Stream Processing: Supports ​MPEG2/H.264 transport stream remultiplexing.
• ​Input Configuration:
  • ​8-channel SPTS/MPTS input, with each channel accepting up to ​216Mbps input bitrate.
• ​Output Configuration:
  • ​2 independent output channels, each delivering an effective bitrate of ​180Mbps (transparent transmission)​.
• ​Advanced Functionality:
  • Supports ​transparent transmission or reconstruction of EIT (Event Information Table) information.
  • Equipped with an ​8MB ultra-large buffer​ to handle bursty streams and perform ​PCR (Program Clock Reference) correction.
• ​High Bandwidth & Reliability:
  • ​Backplane bandwidth reaches 800Mbps.
  • Integrated ​alarm functionality​ with real-time monitoring of input and output signals.
• ​Multiplexing Capacity:
  • Supports ​50 multiplexed output programs (or 256 PIDs)​.
• ​PID Management:
  • Provides ​PID remapping, transparent transmission, filtering, conflict detection, and sorting​ capabilities.
• ​PSI/SI & Table Management:
  • Supports ​insertion and generation of PSI/SI information tables, including ​NIT (Network Information Table) and SDT (Service Description Table) editing.
• ​Data Multiplexing:
  • Enables ​data insertion​ and multiplexing/transmission of various data types.
• ​Network Management:
  • Supports ​network management via SNMP protocol, with ​Chinese/English LCD display, ​front-panel button operation, and ​remote network management control.
• ​Design & Stability:
  • Built with a ​high-reliability design​ for stable and consistent operation.
