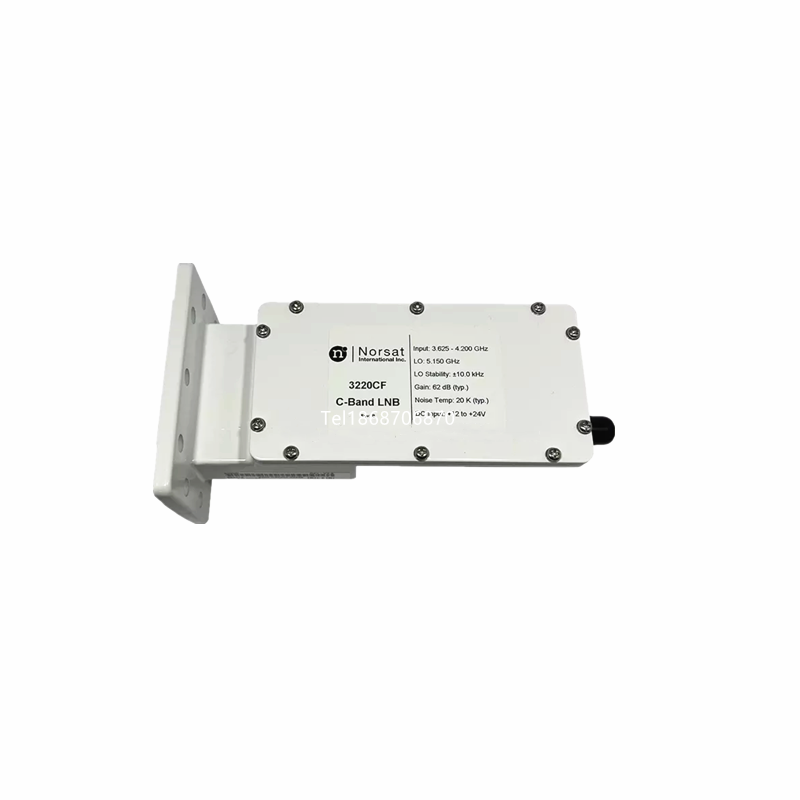

Norsat LNB 3220CF, C-Band PLL LNB 3.625 - 4.2 GHz ±10 kHz Stability F 75 Ohm

Norsat LNB 3220CF, C-Band PLL LNB 3.625 – 4.2 GHz ±10 kHz Stability F 75 Ohm

Original price was: ¥2,800.00.Current price is: ¥1,900.00.

Categories: C band LNB, LNB

Description
Reviews (0)

Description

Norsat LNB 3220CF, C-Band PLL LNB 3.625 – 4.2 GHz ±10 kHz Stability F 75 Ohm

3220CF SPECIFICATIONS
Input Frequency				3.625 to 4.20 GHz
L.O. Frequency				5.15 GHz
IF Frequency				950 to 1525 MHz
Noise Temperature				20K typ., 24K max.
L.O. Stability				±10 KHz
Phase Noise (SSB) max.				-73 dBc/Hz at 1 kHz
				-83 dBc/Hz at 10 kHz
				-93 dBc/Hz at 100 kHz
Input VSWR				2.3:1 max.
Output VSWR				2.3:1 max.
Gain				62 dB typ., 60 dB min., 70 dB max.
Gain Flatness (over full band)				≤ 4 dB p-p max.
Output P1dB				+5 dBm min.
DC Power				+12V to +24V DC
Current				250 mA max.
Input (waterproof)				CPR229G waveguide grooved
Output (waterproof)				F-Connector 75 Ohm
Dimensions				180 x 100 x 70 mm (7.1 x 4.0 x 2.8 in)
Weight				575 g (20.28 oz)
Operating Temperature				– 40 to + 60°C
Storage Temperature				– 40 to + 80°C
