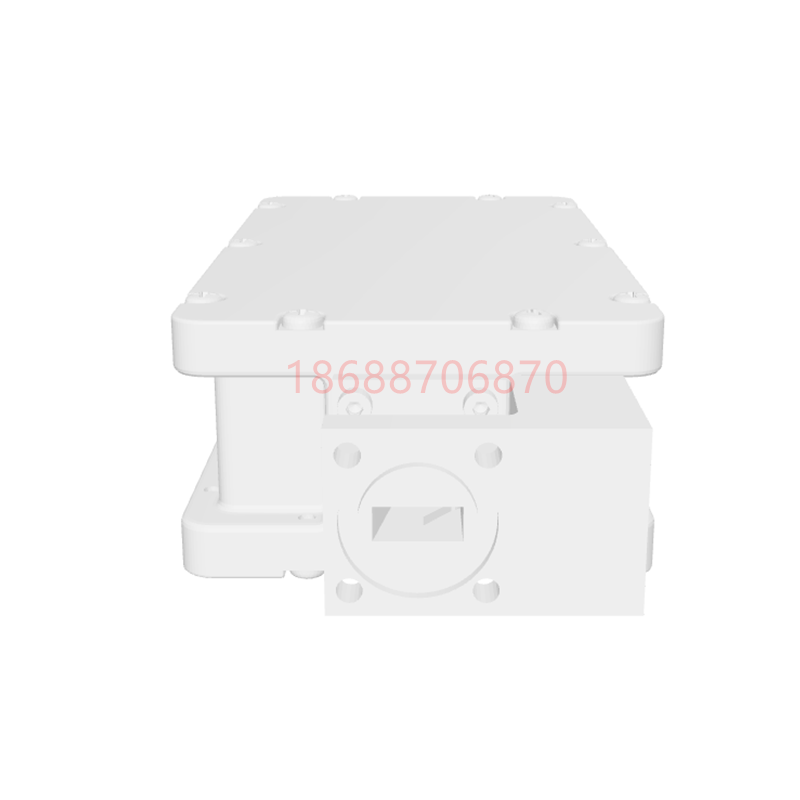

Norsat 9500HI5N KA-BAND 5 BAND PLL 9000H5 诺赛特KA高频头降频器

Description

Norsat 9500HI5N KA-BAND 5 BAND PLL 9000H5 诺赛特KA高频头降频器

Norsat 9500HI5N,KA-BAND 5 BAND PLL 9000H5,诺赛特KA高频头降频器

NF 2.5 dB typ., 2.9 dB max. – no isolator @ CF 2.6 dB typ., 3.0 dB max. – with isolator @ CF L.O. Stability ± 10 KHz max. Phase Noise (SSB) max. -70 dBc/Hz at 1 kHz -78 dBc/Hz at 10 kHz -93 dBc/Hz at 100 kHz Input VSWR 3.5 : 1 max. – no isolator 1.5 : 1 max. – with isolator Output VSWR 2.2 : 1 max. Gain 60 dB typ., 55 dB min., 65 dB max. Gain Flatness (each band) ≤ 4 dB p-p Output P1dB + 10 dBm min. (see below for Band Select) Current 500mA Input (waterproof) WR-42 waveguide grooved Output (waterproof) F-Connector (75 Ohm) N-Connector (50 Ohm) Dimensions (L x W x H) 137mm x 67mm x 39mm (5.4 in x 2.6 in x 1.5 in) – no isolator 156 mm x 67 mm x 39 mm (6.1 in x 2.6 in x 1.5 in) – with isolator Weight 550 g (19.4 oz) Operating Temperature – 40 to +60˚C Storage Temperature – 40 to +80˚C

                                                                                                                       Band 1                                                    Band 2

&nbsp(13V)&nbsp(13V / 22 kHz Tone)
