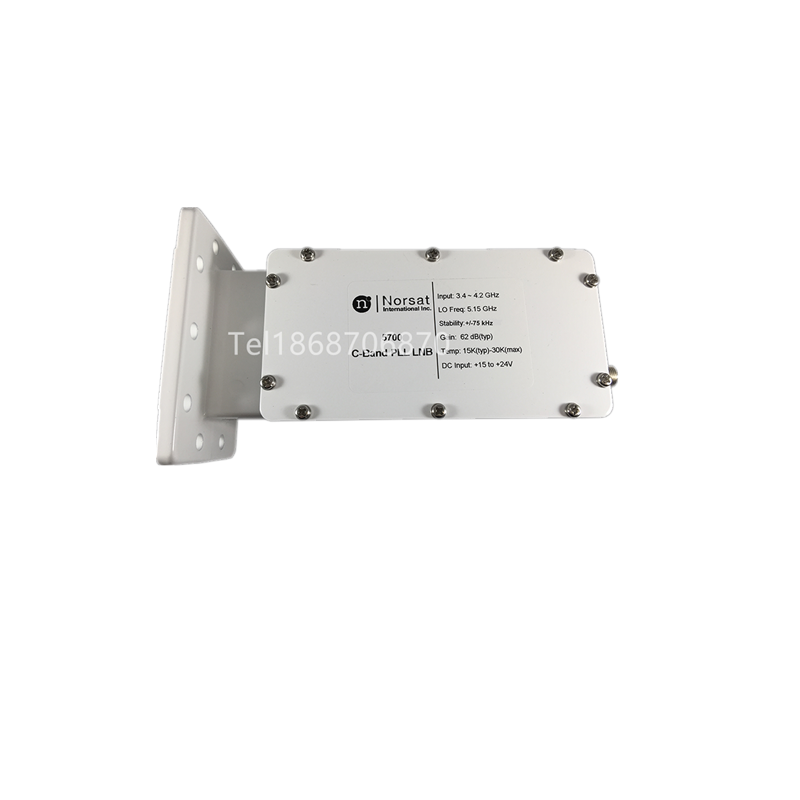

Norsat 5700 5700F 5700N C-Band Single Band PLL LNB 5000 Series Input Frequency: 3.4 – 4.2 GHz LO Frequency: 5.15 GHz Output Frequency: 950 – 1750 MHz LO Stability: ±75 kHz Noise Temperature: 15K Typ

Norsat 5700 5700F 5700N C-Band Single Band PLL LNB 5000 Series Input Frequency: 3.4 – 4.2 GHz LO Frequency: 5.15 GHz Output Frequency: 950 – 1750 MHz LO Stability: ±75 kHz Noise Temperature: 15K Typ

Original price was: ¥1,585.00.Current price is: ¥1,300.00.

Compare
Category:

Description

Norsat 5700 5700F 5700N C-Band Single Band PLL LNB 5000 Series Input Frequency: 3.4 – 4.2 GHz LO Frequency: 5.15 GHz Output Frequency: 950 – 1750 MHz LO Stability: ±75 kHz Noise Temperature: 15K Typ

 5700F, 5700N
Input Band
  • 3.4–4.2 GHz
LO Frequency
  • 5.15 GHz
Output Band
  • 950-1750 MHz
LO Stability
  • ±75 kHz
Noise Temperature
  • 15 K
Phase Noise
  • -95 dBc/Hz @ 100 kHz
Input VSWR
  • 2.3:1
Output VSWR
  • 2.3:1
Gain
  • 70 dB max.
Output P1dB
  • 10 dBm
Power
  • 12 – 24V DC supplied through center conductor of IF cable
Current Drain
  • 250 mA
Input Waveguide
  • CPR 229G
Temperature Range
  • -40°C to +60°C
Dimensions
  • 7.1 x 4.0 x 2.8 Inches
Weight
  • 20.5 oz
