Description

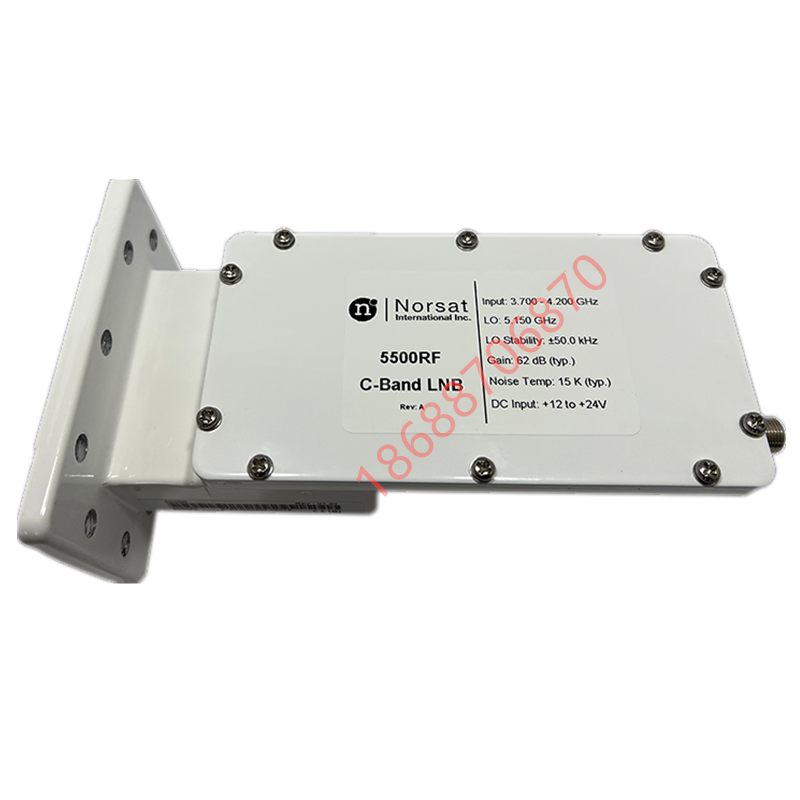

Norsat 5500R

Name: Norsat 5500R 5500RF 5500RN C-Band Single Band PLL LNB 5000R Series
SKU: 3185
Availability: InStock

C-Band Single Band PLL LNB

5000R Series

Input Frequency: 3.7 – 4.2 GHz

LO Frequency: 5.15 GHz

Output Frequency: 950 – 1450 MHz

LO Stability: ±50 kHz

Noise Temperature: 15K Typ

Reference 5500RF, 5500RN

Input Band	3.7–4.2 GHz
LO Frequency	5.15 GHz
Output Band	950-1450 MHz
LO Stability	±50 kHz
Noise Temperature	15 K
Phase Noise	-95 dBc/Hz @ 100 kHz
Input VSWR	2.3:1
Output VSWR	2.3:1
Gain	70 dB max.
Output P1dB	10 dBm
Power	12 – 24V DC supplied through center conductor of IF cable
Current Drain	250 mA
Input Waveguide	CPR 229G
Temperature Range	-40°C to +60°C
Dimensions	7.1 x 4.0 x 2.8 Inches
Weight	20.5 oz
