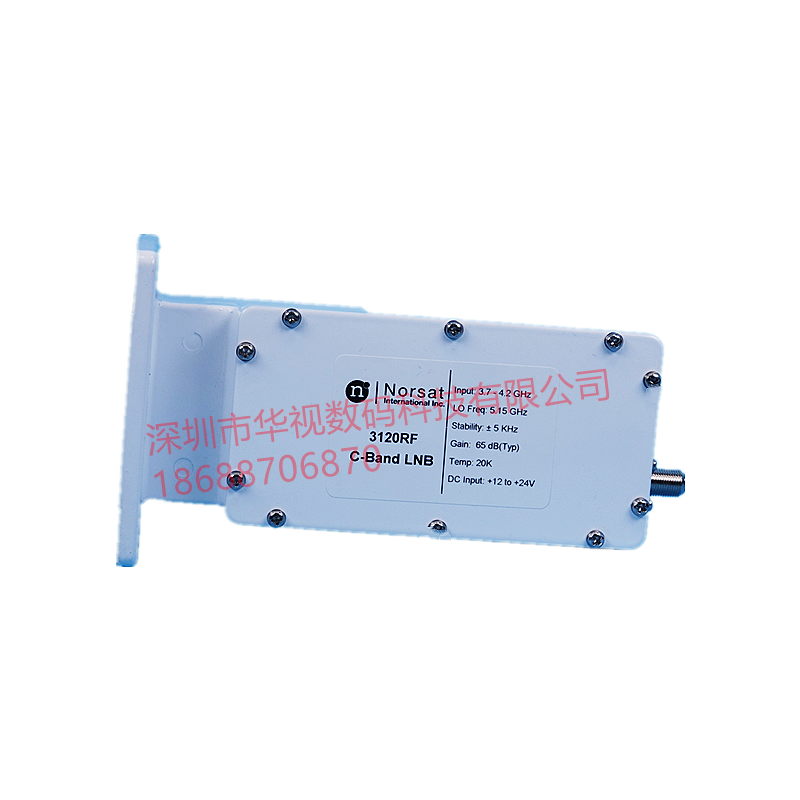

Norsat 3120RF C band LNB 3.7-4.2GHz

Norsat 3120RF C band LNB 3.7-4.2GHz

Original price was: ¥3,480.00.Current price is: ¥1,600.00.

Categories: C band LNB, HD Capture Card AI

Description
Reviews (0)

Description

3120RF SPECIFICATIONS
Input Frequency				3.70 to 4.20 GHz
L.O. Frequency				5.15 GHz
IF Frequency				950 to 1525 MHz
Noise Temperature				20K typ., 24K max.
L.O. Stability				±5 KHz
Phase Noise (SSB) max.				-73 dBc/Hz at 1 kHz
				-83 dBc/Hz at 10 kHz
				-93 dBc/Hz at 100 kHz
Input VSWR				2.5:1 max.
Output VSWR				2.5:1 max.
Gain				60 dB typ., 55 dB min., 70 dB max.
Gain Flatness (over full band)				≤ 4 dB p-p max.
Output P1dB				+8 dBm min.
DC Power				+12V to +24V DC
Current				250 mA max.
Input (waterproof)				CPR229G waveguide grooved
Output (waterproof)				F-Connector 75 Ohm
Dimensions				180 x 100 x 70 mm (7.1 x 4.0 x 2.8 in)
Weight				575 g (20.28 oz)
Operating Temperature				– 40 to + 60°C
Storage Temperature				– 40 to + 80°C
