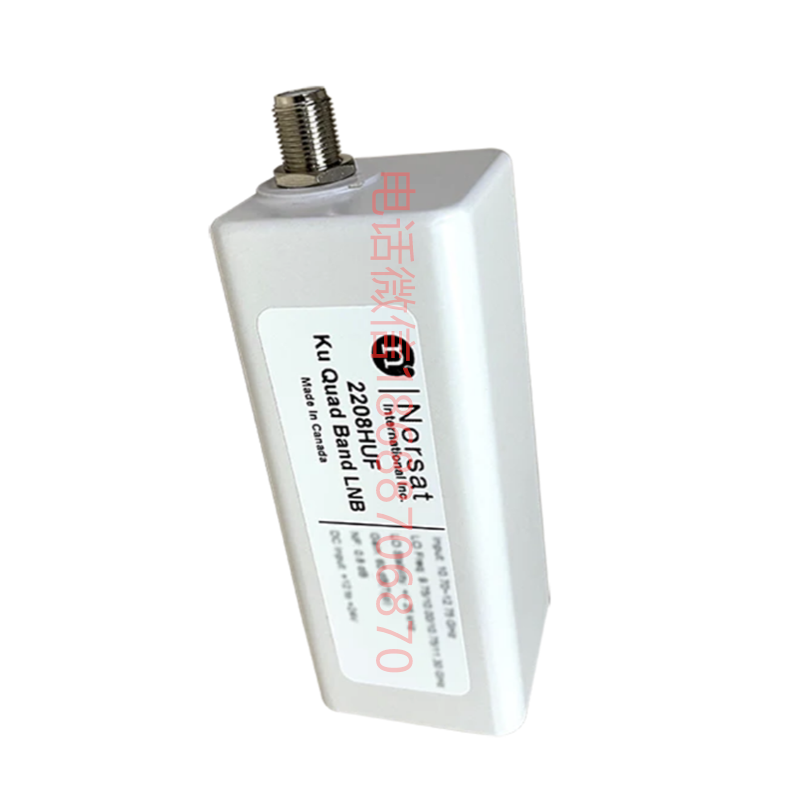

KU-BAND SINGLE MULTI BAND PLL 2000 Series Norsat

Description

KU-BAND SINGLE MULTI BAND PLL 2000 Series Norsat

Noise Figure 0.7 dB typ., 0.8 dB max. at room temp. @ CF
(room temperature: 17°C) 0.8 dB typ., 0.9 dB max. at room temp. @ CF
0.9 dB typ., 1.0 dB max. at room temp. @ CF
L.O. Stability ±10kHz, ±25 kHz
Phase Noise (SSB) max. -75 dBc at 1 kHz
-80 dBc at 10 kHz
-93 dBc at 100 kHz
Input VSWR 2.3 : 1 max.
Output VSWR 2.2 : 1 max.
Gain 60 dB Typ., 55 dB min. 65 dB max.
Gain Flatness ≤ 6 dB p-p
(over full band)
Output P1dB + 5 dBm min

DC Power + 12V to + 24V DC
(See below for Band Select)
Tone: Frequency 22 kHz ±4 kHz
Amplitude Voltage 0.6 ± 0.2 V
Duty Cycle 50% ±10%
Current 350 mA max.
Input (waterproof) WR-75 waveguide grooved
Output (waterproof) F-Connector (75 Ohm)
N-Connector (50 Ohm)
Dimensions (L x W x H) 113 mm x 44 mm x 43 mm
(4.46 in x 1.72 in x 1.70 in)
Weight 300 g (14.11 oz)
Operating Temperature – 40 to +70°C
Storage Temperature – 50 to +80°C
