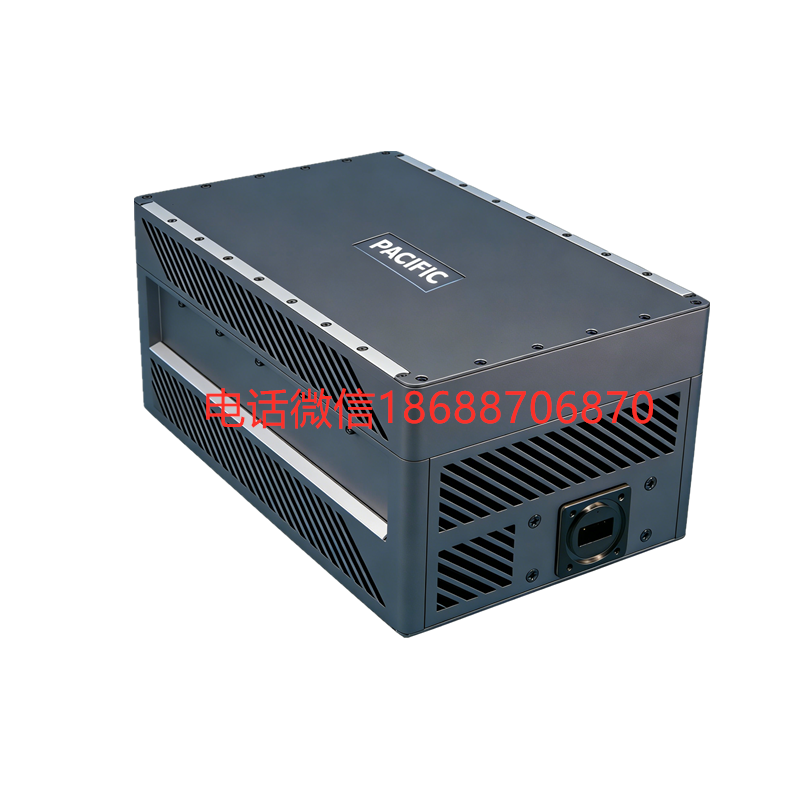

GX107127A Ku Band BUC 10.7GHz~12.7GHz Band 200W

Description

GARDINER

  GX107127A Ku Band BUC 10.7GHz~12.7GHz Band 200W

. Functional Specifications

1. Convert input L-band signals to Ku-band output;
2. Amplify the Ku-band output signal to the specified power level;
3. Equipped with squelch control function, enabling the device to operate or mute;
4. Possess gain adjustment function;
5. Possess detection functions for gain, power, temperature, and reflected power;
6. Equipped with protection functions, including over-excitation protection, over-temperature protection, over-VSWR protection, etc.;
7. Possess self-test function, able to output device operating status;
8. Equipped with network communication function, capable of controlling and monitoring parameters such as output power, gain, local oscillator, transmit switch, etc.;
9. After a power failure and restart, the power amplifier transmission is in the OFF state, with power, gain, and local oscillator settings in a memorized state.

Performance Specifications



1. Transmit Frequency Range: 10.7GHz~12.7GHz;
2. Input Frequency Range: 950MHz~2000MHz;
3. Maximum Output Power: ≥200W;
4. Reference Source: 10MHz;
5. Maximum Gain: ≥70dB;
6. Gain Adjustment Range: ≥20dB;
7. Gain Adjustment Step: ≤0.5dB;
8. Gain Flatness:

≤1dB (40MHz range @25°C);

≤3dB (1050MHz range @25°C);

9. Gain Stability:

≤±0.5dB (24 hours, constant temperature);

≤±1.5dB (full temperature range);

10. Input VSWR: ≤1.8:1;
11. Output VSWR: ≤1.5:1;
12. IM3: ≤-25dBc (Pout=50dBm, △f=5MHz);
13. Spurious Suppression: ≥50dBc;
14. Phase Noise

≤-60dBc/Hz @ 100Hz;

≤-70dBc/Hz @ 1KHz;

≤-80dBc/Hz @ 10KHz;

≤-90dBc/Hz @ 100KHz.

1. 三. Interfaces
2. Ku-band Output Interface: BJ-120 (FBM120 Flange);
3. L-band Input Interface: N-50K;
4. Monitoring Interface: RJ45 Aviator Socket;
5. Power Interface: 220V Aviator Socket.

1. 四. Environmental Compliance
2. Operating Temperature: -40℃~ +55℃;
3. Storage Temperature: -45℃ ~ +70℃.
