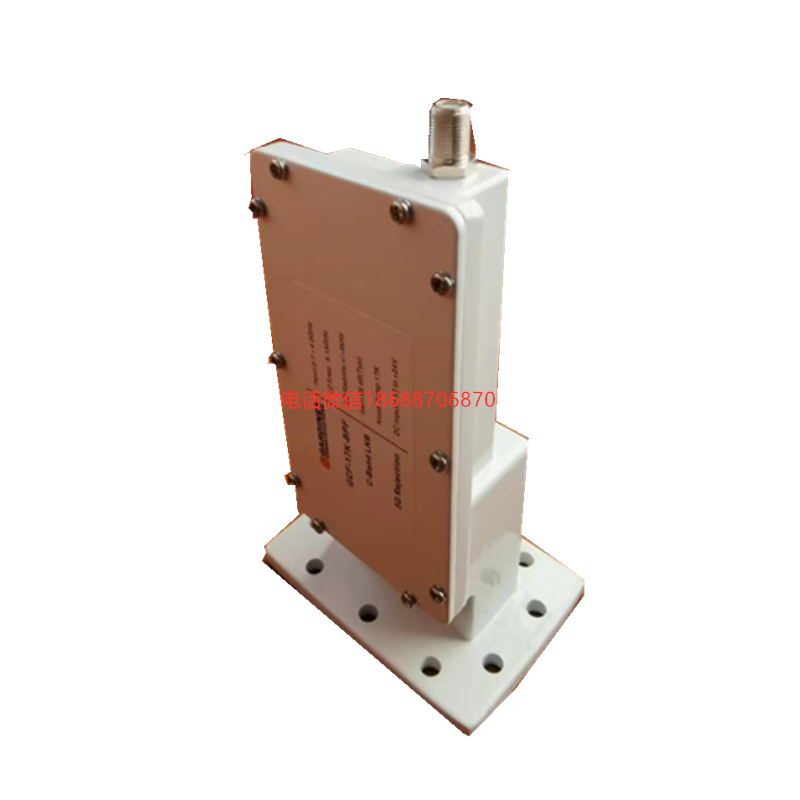

GCF-17k-BPF GARDINER C波段抗5G干扰高频头 抗5G干扰嘉顿高频头

Description

Name: C-band 5G Downconverter LNB (Low Noise Block downconverter for frequency conversion)
Model: GCF-17k-BPF
Technical Parameters:
Input Frequency (GHz): 3.7~4.2 GHz, Output Frequency (MHz): 950~1450 MHz
Local Oscillator Frequency (LO): 5.15 GHz
Gain (GAIN): 65 dB (Typical)
Noise Figure (NOISE): 17K
Output Connector: 75 Ohms
5G Signal Rejection: >40 dB @3.6 GHz
>50 dB @3.5/3.4 GHz
Operating Voltage: 12-24V DC
Interface Type: CPR-229
Operating Temperature: -30℃~ +60℃
Surface Finish: White (painted exterior)
