DCP-1000Pro-M2

DCP-1000Pro-M2

Key Technical Notes​

  1. ​Global Modulation Compatibility:
    • Supports ​DVB-T​ (EU), ​DTMB​ (CN), ​DVB-C​ (Cable), ​ISDB-T​ (JP/LATAM) standards

      .

  2. ​Redundancy Design:
    • Dual Ethernet ports and power supplies eliminate single points of failure

      .

  3. ​High-Density Integration:
    • ​20 HDMI inputs​ in 1U chassis (19″ rack-mountable) with modular RF expansion

      .

  4. ​Broadcast-Grade Features:
    • PSI/SI regeneration ensures EPG compliance (ETSI TR 101 211)

      .

​Terminology Reference​

  • ​HEVC​ = High Efficiency Video Coding (ISO/IEC 23008-2)
  • ​PSI/SI​ = Program-Specific Information/Service Information
  • ​OSD​ = On-Screen Display
  • ​LCN​ = Logical Channel Number (ETSI EN 300 468)
Compare
Category:

Description

数字电视前端系统 DCP-1000Pro-12

编码调制一体机多路编码/调制

DCP-1000Pro-12是一款专为商用场景设计的高性价比HEVC高清编码器，采用高密度集成化设计，支持编码、复用、调制（选配）、IP处理一体化功能，适用于为酒店、医院、会所等商业场景提供稳定的电视信号。

设备采用双电源供电；具备双千兆数据囗及网接囗，强大的IP数据交换处理能力；人性化的网界面，简单易用；单个编码模块支持4路HDMI辅入，单机最大扩展至20路输入；可选配另制式调制功能模块，最大支持4路 DVB-T/DTMB/DVB-C/ I SDB-T

产品特性

  • 支持H．264/HEVC视频编码、MPEGI Layer Il、AAC音频编码
  • 支持4/8/ 12/ 16/20路(I)MI编码（单个模块4路编码），灵活适配各种场景 支持1080p，1080i，720p等另种分辨率输入编码 支持固定码率(CBR)和可变码率(VBR)编码码率控制  支持节名称、i5äPID、PMT PID、视频PID等的参数设定  支持4路复用功能，支持PSI/SIä生成，包括NIT, LCN等表格插入  双千兆网囗，支持64路IP辅入，32路IP输出（主/辅接囗互为备份）  支持OSI) LOGO图片特效叠加功能  可内置2个另制式调制功能模组（选配）
  • 可支持2路或4BDVB-T/DTMB/DVB-C/ ISDB-TiBfiJ输出 支持WEB网，方便远程營理
  • 双电源冗东备份，工作稳定可靠

输出，兼容国内外主流调制标准。型号及接口功能对照表

产品名称   输出 功苗述 订购型号月
多路高清编码器 HDMI 甲 输入，编码模组每组4路BDM ]输入，最大支持5 组（共20路HDMI输入）输出，32路IP输出 DCP-1000Pro编码主机

DCP-1000-EH12: 4路编码模组
多路编码调制器 HDMI RF 输入：编码模组每组4路BDM ]输入，最大支持5 组（共20路HDMI输入）

输出：可选2路或4路多制式调制RF输出

 DCP-1000Pro-M2 2路调制主机

DCP-1000Pro-M12: 4路调制主机

DCP-1000-EH12 4路编码模组
多路调制器   RF 输入：64路] P输入

输出：可选2路或4路多制式调制RF输出

 DCP-1000Pro-M2 2路调制主机

DCP-1000Pro-M12: 4路调制主机

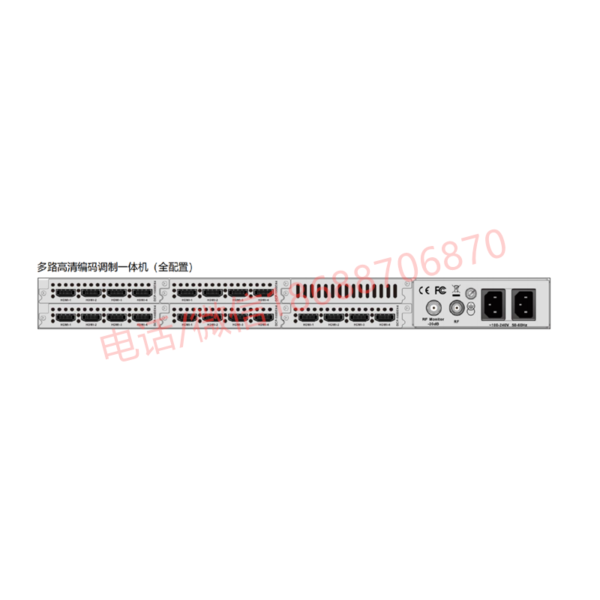

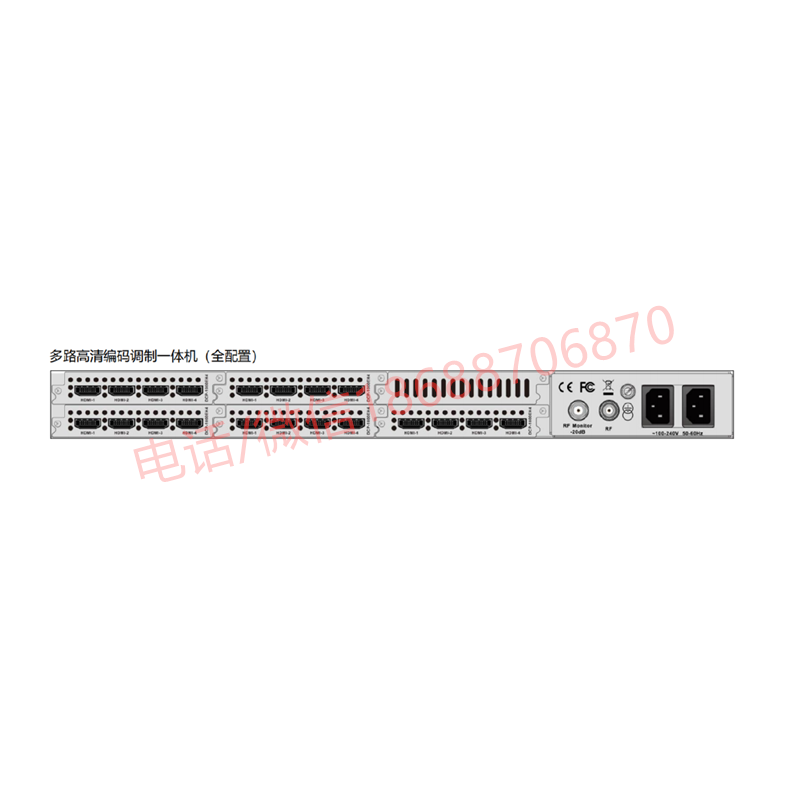

后面板接口示意图多路高清编码调

DCP-1000Pro-12 Multi-Channel Encoding & Modulation System​

​Product Overview​

The DCP-1000Pro-12 is a cost-effective, high-density integrated ​HEVC encoder-modulator​ designed for commercial digital TV front-end systems. It combines ​encoding, multiplexing, optional RF modulation, and IP processing​ in a single 1U chassis, delivering stable TV signal transmission for hotels, hospitals, clubs, and other commercial venues. Featuring ​dual redundant power supplies​ and modular expandability, it ensures 24/7 reliability in mission-critical broadcast environments.

​Core Technical Specifications​

​Video & Audio Processing​

​Parameter​ ​Specifications​
​Video Encoding​ H.264/HEVC (H.265 Main Profile @ Level 5.1)
​Audio Encoding​ MPEG-1 Layer II & AAC-LC stereo
​Input Resolutions​ 1080P, 1080I, 720P (adaptive)
​Bitrate Control​ CBR (Constant Bitrate) / VBR (Variable Bitrate)
​Input Capacity​ Modular 4-channel HDMI groups, scalable to ​20 channels​ (5 modules)
​Overlay Function​ OSD logo/text insertion

​Multiplexing & Broadcast Compliance​

​Parameter​ ​Specifications​
​Multiplexing​ 4-channel TS stream multiplexing
​PSI/SI Generation​ NIT/LCN table insertion (DVB/ATSC compliant)
​Program Customization​ Name, PID, PMT PID, Video PID configuration

​Network & RF Output​

​Parameter​ ​Specifications​
​IP Processing​ Dual Gigabit Ethernet ports (redundant)
​IP Capacity​ 64× IP inputs & 32× IP outputs
​Optional RF Modulation​ ​2× or 4× multi-standard RF outputs​ (DVB-T/DTMB/DVB-C/ISDB-T)
​Management​ Web-based remote control (multi-language UI)

​Model Comparison & Ordering Guide​

​Product Type​ ​Input​ ​Output​ ​Order Model​
​Multi-Channel HD Encoder​ 20× HDMI 32× IP DCP-1000Pro + DCP-1000-EH4 (4ch module)
​Encoder-Modulator Combo​ 20× HDMI 32× IP + ​2× or 4× RF​ DCP-1000Pro-M2 (2 RF outputs)
DCP-1000Pro-M4 (4 RF outputs)
+ DCP-1000-EH4 module
​Standalone Modulator​ 64× IP ​2× or 4× RF​ DCP-1000Pro-M2 / DCP-1000Pro-M4
