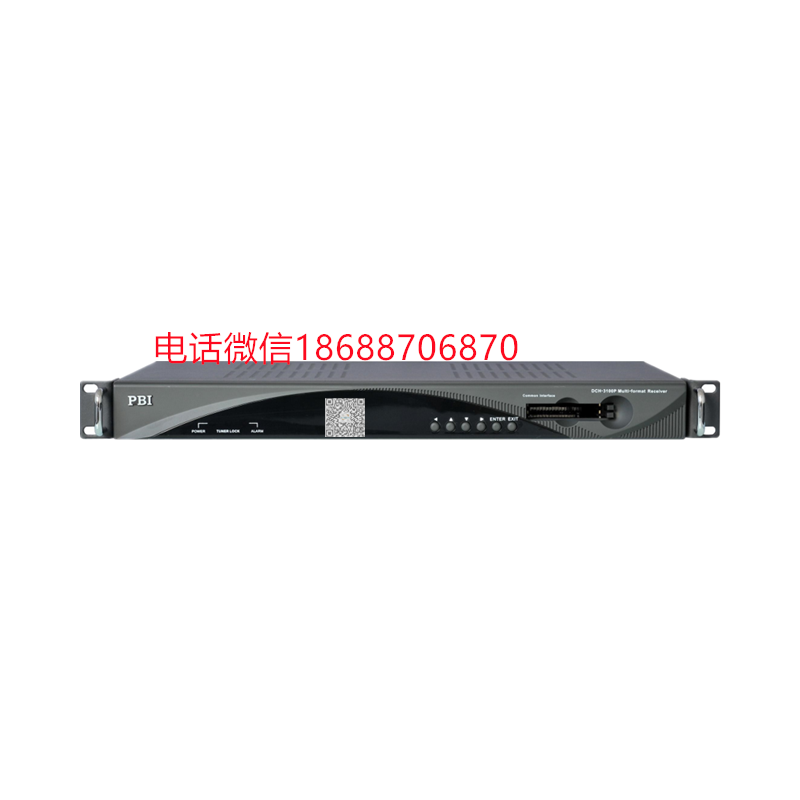

DCH3100P-10s2 卫星接收机 卫星解码器

DCH-3100P is an AVS+ receiver and decoder processor compliant with the GY/T 257.1-2012 industry standard for “Advanced Audiovisual Coding for Broadcasting and Television – Part 1: Video” (AVS+). It is also compatible with MPEG-2 (MP@ML&MP@HL), MPEG-4 AVC/H.264 standards, supporting decoding of high-definition (HD) and standard-definition (SD) video formats such as AVS+, MPEG-2, and MPEG-4 AVC/H.264. For CI descrambling, it supports various conditional access systems including Conax, NDS, Nagra, Cryptoworks, Irdeto, Mediaguard, Viaccess, and Yongxin Shibo. Utilizing unique digital decoding technology and dual PCMCIA interfaces, it can receive various encrypted satellite/cable/terrestrial digital TV signals by swapping different PCMCIA modules.

DCH-3100P boasts a rich array of interfaces, supporting multiple tuner inputs such as DVB-S2/T2/C/T/DTMB/ABS-S, ASI inputs, and TS/IP inputs. After demodulation and descrambling, signals are output to backend equipment via ASI and IP, as well as HDMI. DCH-3100P supports HD and SD MPEG-4/H.264, MPEG-2, and AVS+ video decoding, as well as digital audio decoding. It features analog audio-video signal outputs (CVBS) and balanced audio outputs, as well as digital audio-video interface HDMI. DCH-3100P is a professional-grade HD digital TV signal receiver designed specifically for content providers, broadcasters, cable TV, terrestrial TV operators, etc. It can be widely used in various digital TV networks to meet the customized needs of operators at all levels.

Key Features:

• Compliant with the GY/T 257.1-2012 industry standard for “Advanced Audiovisual Coding for Broadcasting and Television – Part 1: Video” (AVS+).
• Supports decoding of MPEG-2 (MP@ML&MP@HL), MPEG-4 AVC/H.264, and AVS+ video formats.
• Rich input/output interfaces supporting tuners such as DVB-S2/T2/C/T/DTMB/ABS-S/ATSC, TS/IP, and ASI inputs, with multiple digital and analog output interfaces including HDMI and CVBS.
• Supports 1 audio output, compatible with AAC, AC3, and DRA.
• Supports UDP/RTP, unicast/multicast, and full-duplex Gigabit Ethernet interface, enabling single-program and multi-program stream transmission.
• Supports dual CI card slots for descrambling, and supports BISS-1 and BISS-E multi-program descrambling.
• Supports tuner and TS/IP interface input redundancy backup.
• RSSI tuner index acquisition for signal quality assessment.
• Dynamic PMT detection and automatic updates.
• Supports Ethernet and USB upgrade interfaces for easy and quick updates.
• Network management control based on SNMP protocol and web-based network management control.
