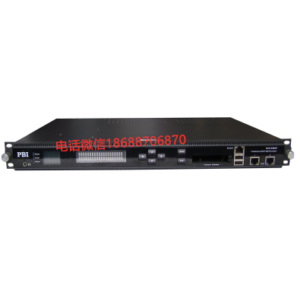

DCH-5500P Specialized Decoder

The DCH-5500P specialized decoder complies with the GY/T 257.1-2012 “Advanced Audio-Video Coding for Broadcasting and Television – Part 1: Video” AVS+ industry standard. It is also compatible with MPEG-2 (MP@ML & MP@HL), MPEG-4 AVC/H.264, and H.265 standards. It supports AVS+/DRA decoding as well as MPEG-2, MPEG-4 AVC/H.264, and H.265 decoding. The CI descrambling feature supports multiple mainstream Conditional Access (CA) systems. Utilizing unique digital decoding technology and dual PCMCIA interfaces, it can receive various encrypted satellite/cable/terrestrial digital TV signals by replacing different PCMCIA modules.

The DCH-5500P decoder boasts a rich set of interfaces. It supports DVB-S2 input, ASI input, and TS/IP input. After performing re-multiplexing, descrambling, and demodulation processing, it can output via ASI, SDI, and TS/IP interfaces. Additionally, it enables monitoring through HDMI, CVBS interfaces, and a 1.5-inch TFT LCD screen on the front panel. It also supports the SDI Genlock function to achieve smooth switching between different SDI signal sources within the system. With dual power supply inputs, it significantly enhances product reliability. Designed for 19″ standard cabinet installation, it is the optimal choice for various digital TV front-end systems.

Main Features

• Complies with GY/T 257.1-2012 “Advanced Audio-Video Coding for Broadcasting and Television – Part 1: Video” AVS+ industry standard
• Complies with MPEG-2 (MP@ML & MP@HL), MPEG-4 AVC/H.264, and H.265 standards
• AVS+ video/DRA audio decoding
• Supports two channels of DVB-S2, TS/IP, and ASI inputs, and multiple digital/analog output interfaces including ASI, HD/SD SDI, TS/IP, AES/EBU, HDMI, and CVBS
• Supports image monitoring on a 1.5-inch TFT LCD screen on the front panel
• Supports external BB/Tri-sync signal input for SDI frame synchronization function
• HD/SD SDI output, supporting embedded audio or compressed pass-through output
• Digital audio AES/EBU output, supporting up to two channels of output
• Supports UDP/RTP, unicast/multicast, full-duplex dual Gigabit network interfaces for transmitting single-program and multi-program transport streams
• Supports dual CI card slots for descrambling, as well as BISS-1 and BISS-E multi-program descrambling
• Built-in re-multiplexing module, supporting signal source selection, PID filtering, and multiplexing for Tuner, ASI, and TS/IP inputs
• Supports redundancy backup for Tuner, ASI, and TS/IP interface inputs
• RSSI Tuner metrics acquisition for signal quality assessment
• Dynamic PMT detection and automatic updating
• Supports Ethernet network port and USB upgrade interfaces for easy and quick upgrades
• Supports network management control based on the SNMP protocol and web-based network management control
• Alarm interface, DB9 male connector
• Seamless hot-swappable dual power supply backup to enhance device reliability

Technical Parameters

Tuner Input

• DVB-S/S2 Input (Standard Configuration)
  • Interface: F connector, 75Ω
  • Input Frequency Range: 950-2150MHz
  • Input Level: -25 to -65dBm
  • Symbol Rate: 2-45MBaud
  • Roll-off Factor:
    • DVB-S QPSK: 0.35
    • DVB-S2 8PSK: 0.35, 0.25, 0.2
  • Convolutional Code Rate:
    • DVB-S QPSK: 1/2, 2/3, 3/4, 5/6, 7/8
    • DVB-S2 QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
    • DVB-S2 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
  • LNB Power Supply Voltage: 0, 13V, 18V (selectable)
  • 0/22K: 0/22KHz (selectable)
  • DiSEqC: DiSEqC 1.0

ASI Input

• Interface: 2×BNC, 75Ω
• Standard: DVB-ASI, EN50083-9
• Input Bit Rate: ≤ 200Mb/s

TS/IP

• Interface: 2×RJ-45, 100/1000 Base-T, independent outputs
• Effective Bit Rate: 500Mb/s, 2 channels of SPTS/MPTS input, 500Mb/s, 2 channels of SPTS/MPTS full-duplex
• Network Protocol: UDP/RTP, Multicast/Unicast, IGMPv3, ARP

TS Processing

• TS Input Management: Supports demultiplexing for 2 channels of TUNER, ASI, and TS/IP inputs
• TS Output Management: Supports 2 channels of independent ASI re-multiplexing outputs, supporting PID filtering and remapping
• PSI/SI Table Processing: Automatic PSI/SI generation, NIT/SDT/EIT editing, LCN editing and regeneration
• TS Built-in Descrambling: DVB Common Scrambling Algorithm (CSA)
• BISS Modes: BISS-1, BISS-E
• CI Descrambling: Dual PCMCIA, compatible with mainstream CAM cards on the market

ASI Output

• Interface: 2×2 BNC, 75Ω, 2 independent outputs
• Standard: DVB-ASI, EN50083-9
• Output Bit Rate: ≤ 200Mb/s
• TS Processing: 2 independent outputs, can pass through input signals directly or output after re-multiplexing

Audio-Video Decoding

• Video Formats:
  • MPEG-2 (MP@ML for SD, MP@HL for HD)
  • MPEG-4/H.264 AVC Part 10 (MP@L3 for SD, HP@L4.1 for HD)
  • AVS baseline profile @ level 6.0, supporting AVS-P16
• Audio Formats:
  • MPEG L1/L2
  • DRA/Real Audio
  • AAC-LC, HE AAC V1/V2

HDMI

• Standard Compliance:
  • AVS+ programs: 1×HDMI 1.4 (up to 1080i)
  • MPEG2/H264 programs: 1×HDMI 1.4 (up to 1080i)
• Video Resolutions: 1080I60, 1080Ii59.94, 1080I50, 720P60, 720P59.94, 720P50, 480P, 576P, 576I, 480I
• Embedded Audio: 1×stereo

SD/HD-SDI Output

• Interface: 2 BNC (mirrored), 75Ω
• SDI Video Resolutions:
  • 1080i×60, 1080i×30, 1080i×29.97, 1080i×25
  • 720p×60, 720p×59.94, 720p×50, 720p×29.97, 720p×25
  • 576i×25, 480i×29.97
• SD Specifications: SMPTE 259M, 270 Mb/s (10bit)
• HD Specifications: SMPTE 292M, 1.485 Gbit/s (10bit)
• Embedded Audio: 2 channels of PCM audio or digital audio pass-through
• Amplitude: 800mV p-p

Genlock

• Interface: 1×BNC, 75Ω
• Input Signal: Analog SD (black & burst)

Analog Video Output

• CVBS Interface:
  • AVS+ programs: 1×BNC, 75Ω
  • MPEG2/H264 programs: 1×BNC, 75Ω
• CVBS Specifications: NTSC, PAL, and SECAM
• CVBS Resolutions: 576i×25, 480i×29.97
• Amplitude: 1.0 Vp-p ±5% (under standard test signal)
• Frequency Response: <±1 dB, at 5.5 MHz for PAL/SECAM, 4.2MHz for NTSC
• Chrominance-Luminance Delay: <±30 ns
• Field Distortion: <2%
• Line Distortion: <1%
• Short-term Distortion: <2%
• Differential Gain: <3%
• Differential Phase: <2°
• Signal-to-Noise Ratio: >55dB (weighted)

Analog Audio Output

• Interface:
  • AVS+ programs: BNC (L&R), 75Ω
  • MPEG2/H264 programs: 2×D-sub9, 600Ω, with adapter cable
• Output Modes: Left, Right, Dual Mono, Stereo
• Output Quantity: 1 channel of stereo
• Crosstalk: >70dB
• Distortion: <0.3% @ 400Hz, 1KHz test tone
• Frequency Response: ±0.5dB over 20Hz-18KHz

Redundancy Backup

• Interfaces: Supports mutual backup among Tuner, ASI, and TS/IP input interfaces
• Backup Conditions: Loss of TS stream sync header
• Backup Modes: Main, Spare

Alarm

• Interface: 1×D-sub 9 male
• Application Conditions: User-defined

Control and Monitoring

• Interface: 1×RJ-45, 10/100 Base-T
• Remote Control: SNMP 2.0, HTTP (Web GUI), HDMS (Headend Device Management System)
• Local Control: LCD screen, 6-key keyboard on the front panel
• Monitor: 1.5” TFT-LCD screen
• Debugging Interface: 1×DB9, RS-232 serial port
• Software Upgrade: Three methods: WEB, USB, and FTP Telnet

Physical Parameters

• Dimensions: 1U 19″ cabinet installation
• Power Supply and Power Consumption: AC 90V-250V, 50/60Hz, 30W (excluding LNB power supply)
• Operating Environment Temperature: 0-45℃
• Storage Environment Temperature: -10-60℃
• Operating Environment Humidity: 10-90%, non-condensing
