DCH-5400EC 4-Channel HD Encoder​

​Product Overview​

The DCH-5400EC is a 4-channel H.265/H.264 HD encoder supporting ​4× HD/SD-SDI signal inputs. It accepts multiple signal sources (e.g., satellite receivers, CCTV cameras, broadcast servers) and encodes input signals via ​H.265/H.264 compression. Renowned for reliability and high performance, it is widely deployed in hotels, schools, apartments, clubs, live streaming, and security surveillance systems

.

​Core Features​

  1. ​Video & Audio Encoding​
    • ​Video: H.264/H.265 encoding (Main Profile Level 5.0 / High Profile Level 5.1)
    • ​Audio: MPEG-1 Layer II & MPEG-4 AAC-LC stereo encoding
  2. ​Input Flexibility​
    • 4× SDI inputs (max. ​1080P@60Hz) with embedded audio + 2× analog Line audio inputs
    • Supports resolutions: 2160P@30Hz (HDMI only), 1080P/I@50/60Hz, 720P@50/60Hz (1080I outputs converted to 1080P)
  3. ​Advanced Controls​
    • Adjustable frame rate (5–60 fps for 1080P) and keyframe interval (1–250)
    • Bitrate control: ​CBR, VBR, AVBR​
  4. ​Streaming & Protocols​
    • Output protocols: ​UDP/RTP/RTSP, RTMP push/pull, HTTP/HLS, SRT​
    • Max. effective bitrate: ​32Mbps​
  5. ​Overlay & Management​
    • Effects: Image, text, scrolling subtitles, timestamp, mosaic
    • Web-based multilingual (CN/EN) management + ​Anbo G0 O&M Platform​ (Basic Edition)
  6. ​Redundancy​
    • ​Dual backup power supply​ for 24/7 stability

​Technical Specifications​

​Video Processing​

​Parameter​ ​Specifications​

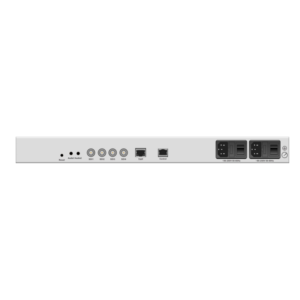

​Input Interface​ SDI × 4
​Encoding Standard​ H.265 Main Profile Level 5.0; H.264 Baseline/Main/High Profile Level 5.1
​Sampling Format​ YCbCr 4:2:0
​Resolutions/Frame Rates​ 2160P@30Hz (HDMI only); 1080P@50/60/30Hz; 1080I@50/60Hz (output converted to 1080P); 720P@50/60Hz
​Overlay Effects​ Image, text, scrolling subtitles, timestamp
​Aspect Ratio​ 16:9

​Audio Processing​

​Parameter​ ​Specifications​
​Input Interface​ SDI embedded × 4; Line × 2
​Encoding Standard​ MPEG-1 Layer II, MPEG-4 AAC-LC
​Sampling Rate​ 44.1kHz / 48kHz
​Bitrate Range​ MPEG-1 Layer II: 64–256 Kbps; AAC-LC: 48–256 Kbps (stereo)

​Network & Transmission​

​Parameter​ ​Specifications​
​TS/IP Interface​ 1× RJ45 (GbE, 1000Base-T)
​Max. Bitrate​ 32 Mbps
​Network Protocols​ HTTP, HLS, RTSP, RTMP push/pull, UDP multicast/unicast, SRT
​Control Protocols​ ICMP, ARP, IGMP v2

​Physical & Management​

​Parameter​ ​Specifications​
​Power Supply​ AC 90–250V, 50/60Hz
​Dimensions (W×L×H)​​ 483 × 261 × 44 mm
​Weight​ 3.5 kg
​Management​ Web-based (CN/EN); Remote firmware upgrade
​Reset​ DEF reset button

​Key Technical Notes​

  1. ​Resolution Limits:
    • ​2160P@30Hz​ only supported via HDMI input; SDI inputs limited to ​1080P@60Hz​

      .

    • 1080I inputs are ​output-converted to 1080P​ to avoid interlacing compatibility issues.
  2. ​Audio Flexibility:
    • Dual sampling rates (44.1kHz/48kHz) support both music production and broadcast standards

      .

  3. ​Network Optimization:
    • ​SRT protocol​ enhances anti-packet-loss capability for public network transmission

      .

  4. ​Deployment:
    • ​19-inch rack-mountable design​ (483mm width) with redundant power for critical environment
