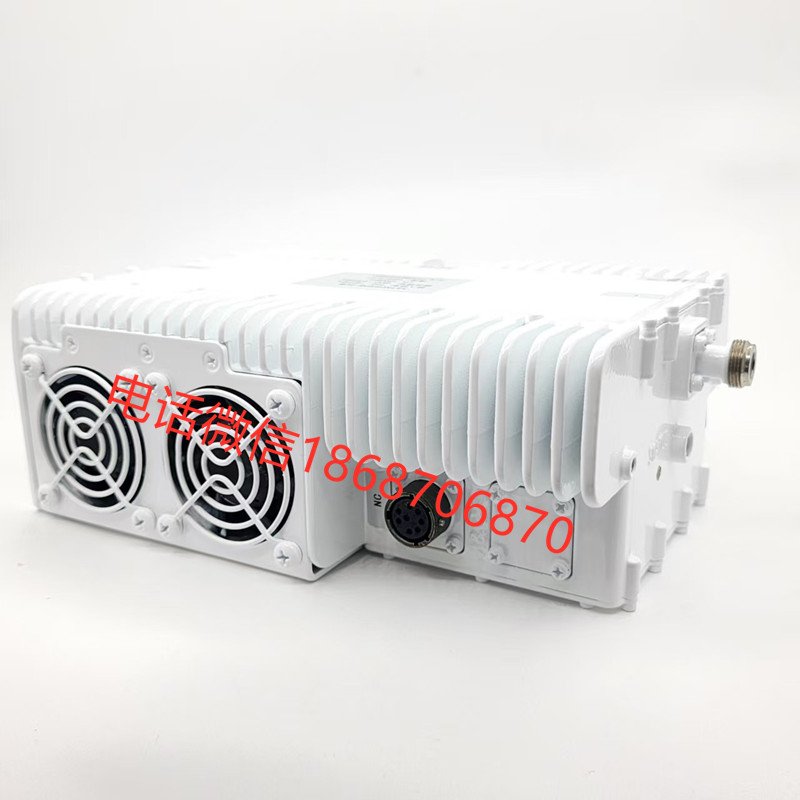

5.925-6.725GHz BUC 功放 上变频器 20瓦

Description

5.925-6.725GHz BUC 功放 上变频器 20瓦

Output： 20W
Transmission Frequency: 5.925–6.425 GHz, 5.850–6.725 GHz (extended frequency range)
Intermediate Frequency (IF): 950–1525 MHz, 950–1825 MHz (extended frequency range)
Small-Signal Gain: 70 dB
Gain Flatness: ≤3 dB/575 MHz, ≤4 dB/875 MHz
Attenuation Control: 0–20 dB, step size 0.1 dB
Third-Order Intermodulation: -25 dBc
Spurious Emissions: -55 dBc
Input/Output VSWR (Voltage Standing Wave Ratio): 1.5:1/1.35:1
Power Consumption: ≤140 W
Weight: 5 kg
Phase Noise: -65 dBc/Hz @100 Hz
-75 dBc/Hz @1 kHz
-85 dBc/Hz @10 kHz
-95 dBc/Hz @100 kHz
External Reference Source Requirement: 10 MHz, 0±5 dBm
Interfaces: IF Input, External Reference Input: N-50K (F-75K optional)
Output: Waveguide BJ-70 with corresponding flange FDM70 (N-50K optional)
Power Supply: Aviation Connector
Monitoring: Aviation Connector (Ethernet port)
Power Supply Voltage: +36 to +72 VDC (85 to 265 VAC, 47–63 Hz optional)
Operating Temperature: -40°C to +60°C
Operating Humidity: 0 to 100% (condensing)
