Showing 1–16 of 55 results

  • ACM-5150-2-FR C band LNB C波段5G降频器 高频头

    ¥3,480.00

    ACM-5150-2-FR C band LNB C波段5G降频器 高频头 3.7-4.2GHz

    Add to cartDone
  • Sale!

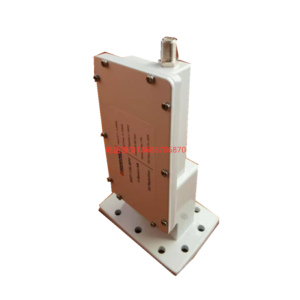

    BPF-C-3742 C Band 5G Filter GARDINER LNB LNA

    Original price was: ¥3,800.00.Current price is: ¥2,100.00.

    BPF-C-3742 C Band 5G Filter GARDINER LNB LNA No. ​Test Item ​Unit ​Technical Requirement ​Test Result ​Judgment 2 Insertion Loss dB ≤0.5 0.39 Qualified C VSWR (Voltage Standing Wave Ratio) – <1.4 1.21 Qualified 3.7–4.2 GHz 5G Signal Suppression Capability dB ≥85 >83.0 Qualified 3.4–3.5 GHz 5G Signal Suppression Capability dB ≥85 75.8 Qualified 3.5–3.6…

    Add to cartDone

  • DCH-3400PR Multi-channel Audio Decoder

    DCH-3400PR Multi-channel Audio Decoder DCH – 3400PR Multi-channel Audio Decoder Product Overview The DCH – 3400PR multi-channel audio processor complies with MPEG – 2 (MP@ML& MP@HL) and MPEG – 4 (AVC high profile level 4.1). It features 4 TUNER IN ports, supports AVS+ decoding, as well as MPEG – 2, MPEG – 4, H.264, and…

    Read moreDone
  • Sale!

    DCH-3400PR 多路音频解码器 多路音频处理器

    Original price was: ¥25,800.00.Current price is: ¥18,200.00.

    DCH-3400PR 多路音频处理器，符合MPEG-2 （MP@ML& MP@HL），MPEG-4（AVC high profile level 4.1），4路TUNER IN，支持AVS+解码，MPEG-2、MPEG-4、H.264、H.265/HEVC解码，2个CI卡槽，CI解扰支持Conax、Cryptoworks、Irdeto、Mediaguard、SECA、NDS、Nagra 以及Viaccess、永新视博等多种有条件接收系统，采用独特数字解码技术和PCMCIA接口，通过更换不同的PCMCIA模块来接收各种加密的卫星/有线/地面数字电视信号；

    DCH-3400PR的输入、输出接口十分丰富， ETHERNET网络管理实现远程控制和参数配置，操作方便；此外还具有4组AES加备份输出，4路模拟平衡音频输出，2路ASI 输出接口，1路ASI输入接口。支持千兆IP输入输出。

     DCH-3400RR专业级高清符合MPEG-2、 MPEG-4、H.264、H.265、DVB标准，广播级声音，高品质设备19″标准机柜安装，是您应用于各种数字电视前端系统的最佳选择。

    * 符合MPEG-2（MP@ ML& MP@HL）、MPEG-4 （AVC high profile level 4.1）支持MPEG-4、H.264、H.265/HEVC解码，

    * 输入、输出接口十分丰富，支持4路TUNER　IN，DS3 输入（可选），1路ASI IN，2路ASI输出、

    * 音频输出接口：4组模拟平衡伴音、4组数字AES/EBU

    * 支持2个CI卡槽

    *全双工模式，输入输出总码率300M或64路IPTV/DVB模式输出，码率200-300M，

    * 码流处理方式包括：单路解扰、多路解扰、PID复用/过滤、PSI/SI 插入、204/188变换

    * 支持PMT自动更新功能

    * ETHERNET网络管理接口，支持SNMP v2协议，支持网络接口对软件进行升级

    * 支持模拟音频音量单独可调功能

    * 支持双电源

    * 具有断电记忆功能

    * 支持USB快速升级功能



    技术参数

    DVB-S/S2/ISI/S2X 输入 (QPSK/8PSK/16APSK/32APSK/64APSK )
    连接头 英制F头4个
    输入频率范围 950 ∼ 2150MHz
    输入电平 -25~-65dBm
    输入阻抗 75Ω
    符号率 DVB-S2X/S2

    QPSK 8PSK: 1 ~ 60MSps

    16APSK: 1 ~ 58MSps

    32APSK: 1 ~ 55MSps

    64APSK: 1 ~ 34MSps

    DVB-S

    QPSK: 1~54MSps
    滚降系数 DVB-S QPSK: 0.35

    DVB-S2 8PSK: 0.35, 0.25, 0.2

    DVB-S2X：0.35, 0.25, 0.2, 0.15, 0.1, 0.05
    卷积码率 DVB-S QPSK: 1/2, 2/3, 3/4, 5/6, 7/8

    DVB-S2 QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9,9/10

    DVB-S2 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10

    DVB-S2X: 64800 bits FECFRAME VCM and ACM
    LNB供电电压 0,13V,18V可选
    0/22K 0/22KHz 可选
    DiSEqC DiSEqC 1.0
    PLS 0 ~ 262141可调
    ISI 1 ~ 255可调
    ABS-S 输入
    接口 4×F 接头，75Ω，
    输入频率范围 950~2150MHz
    输入电平 -25~-65dBm
    符号率 2~45MSps
    滚降系数 0.2 0.25, 0.35
    调制方式 QPSK，8PSK
    卷积码率 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 13/15, 9/10
    DVB-C QAM解调
    连接头 英制F头4个
    输入符码率 1～7MS/s （PAL），1～6MS/s （NTSC）
    解调方式 16/32/64/128/256 QAM
    带宽 6MHz或7MH或8MHz
    输入频率 42 ~ 1002 MHz
    输入电平 45dBuV~75dBuV
    输入阻抗 75Ω,
    DVB-T/ COFDM解调（完全符合DVB-T&MPEG2国际标准）
    连接头 英制F头4个
    调制方式 QPSK, 16-QAM, 64-QAM
    带宽 6 MHz/7MHz/8MHz
    载波模式 2K/8K
    保护间隔 1/4, 1/8, 1/16, 1/32(DVB-T)
    FEC解码率 1/2, 2/3, 3/4, 5/6, 7/8(DVB-T)
    输入频率 174-230MHz（VHF），470-862MHz（UHF）
    输入电平 -70～-20dBmV
    输入阻抗 75Ω,英制F头
    DTMB Tuner 输入
    接口 4×F 接头，75Ω，
    输入频率范围 44 ~ 1002 MHz
    输入电平 -60dBm ~ -20dBm
    带宽 6MHz/7MHz/8MHz
    星座图 4QAM-NR,4QAM,16QAM,32QAM,64QAM
    帧头 PN420, PN595, PN945
    交织深度 240,720
    LDPC Code Rate 0.4, 0.6, 0.8
    ASI输入
    接口                                      1路BNC接口
    标准 DVB-ASI, EN50083-9
    输入码率 ≤ 200Mb/s
    ASI输出
     接口                                    2个独立BNC接口，是复用输出的ASI OUT
     接口类型                                   BNC Female, 75Ω
     有效输出码率                               1.5 Mb/s ～200 Mb/s
     数据模式                                   Byte
     包长                                       188/204 Bytes
     信号电平 800±80mV
    音视频解码
    视频格式 MPEG-2(MP@ ML for SD, MP@HL for HD),

    MPEG-4/H.264 AVC Part 10 (MP@L3 for SD, HP@L4.1 for HD),

    AVS 基准档次@级别6.0, 支持AVS-P16，HEVC，AVS+
    音频格式 MPEG L1/L2

    DRA/Real Audio

    AAC-LC 、HE AAC V1/V2,AC3 Dolby Digital,.
    模拟音频输出
    接口 Min卡侬头
    输出模式 Left, Right, Dual Mono, Stereo
    输出数量 4路音频
    数学音频输出
    接口 Min卡侬头
    输出模式 AES
    输出数量 4组加备份
    TS over Ip
    接口类型                                    2*RJ-45，100/1000 Base-T
    有效码率 全双工模式，输入输出总码率300M

    64路IPTV/DVB模式输出，码率200-350M。
    协议 UDP / RTP, Multicast / Unicast, IGMPv3, ARP
    网管
    接口 RJ45, 100M
     网管协议 SNMP V2, ARP, IGMP V2,IGMP V3
    监控
    RS-232 串行口，与PC通讯使用
    报警 DB9输出
    一般物理参数
    运行温度 0-45℃
    存储温度 -20～70℃
    供电 AC 90V~260V  50Hz/60Hz
    外型尺寸 44mm×255mm×430mm
    净重 3.5kg







    Add to cartDone

  • GARDINER 13K C band LNB 嘉顿 高频头 C波段高频头 降频器

    GARDINER 13K C band LNB 嘉顿 高频头 C波段高频头 降频器 RF Performance Parameters Parameter Specification Unit/Condition Operating Frequency Range 3.40 – 4.20 GHz System Noise Figure ≤13 K Input RF Signal Level Range -100 to -55 dBm Image Rejection ≥45 dBc Cross-Polarization Isolation ≥35 dB Output Frequency Range 950 – 1750 MHz Output Impedance 75 Ω…

    Read moreDone
  • Sale!

    GARDINER 15K C Band LNB 嘉顿 高频头 降频器 3.4-4.2GHz

    Original price was: ¥998.00.Current price is: ¥380.00.

    GARDINER 15K C Band LNB 嘉顿 高频头 降频器 3.4-4.2GHzRF Performance Parameters Parameter Specification Unit/Condition Operating Frequency Range 3.40 – 4.20 GHz System Noise Figure ≤15 K Input RF Signal Level Range -100 to -55 dBm Image Rejection ≥45 dBc Cross-Polarization Isolation ≥35 dB Output Frequency Range 950 – 1750 MHz Output Impedance 75 Ω Output…

    Add to cartDone
  • Sale!

    GARDINER 17°K C Band LNB 嘉顿高频头 C波段电视工程降频器价格

    Original price was: ¥998.00.Current price is: ¥1.00.

    GARDINER 17°K C Band LNB 嘉顿高频头 C波段电视工程降频器价格 RF Performance Parameters Parameter Specification Unit/Condition Operating Frequency Range 3.40 – 4.20 GHz System Noise Figure ≤17 K Input RF Signal Level Range -100 to -55 dBm Image Rejection ≥45 dBc Cross-Polarization Isolation ≥35 dB Output Frequency Range 950 – 1750 MHz Output Impedance 75 Ω Output Standing…

    Add to cartDone
  • Sale!

    GARDINER 17K 3605 17°K C band LNB 降频器 高频头 低噪声放大器

    Original price was: ¥498.00.Current price is: ¥320.00.

    GARDINER 17K C-Band LNB: Elevate Your Satellite Reception Experience

    Product Name: C-Band Single-Polarization Single-Output Satellite LNB

    Model: GARDINER-3605 (17°K)

    Unleash the Power of Clarity with GARDINER-3605 (17°K)!

    Introducing the GARDINER-3605 (17°K), a state-of-the-art satellite LNB designed for excellence. As a C-Band single-polarization, single-output device, it boasts a wide receiving frequency range, premium quality, and an ultra-low noise figure of 17°K, perfectly suited for digital compressed satellite signals and the latest generation of satellites.

    Crafted with precision, our LNB features a compact, sleek design, and exceptional waterproof performance. It’s not just a product; it’s a masterpiece tailored for broadcast departments at provincial and municipal levels, military installations, securities firms, and anyone seeking uncompromising satellite TV reception.

    Key Specifications:

    • Input Frequency: 3.40-4.20 GHz
    • Noise Figure @23°C: 17°K
    • Input RF Level: -100 to -55 dBm
    • Image Carrier Suppression: >45 dBc
    • Cross-Polarization Isolation: ≥35 dB

    Output Performance:

    • Output Frequency: 950-1750 MHz
    • Output Impedance: 75 Ω
    • Output VSWR: <2.0:1 (max)
    • Gain @23°C: 65 dB (typical)
    • Gain Flatness: ±3 dB

    Local Oscillator (LO) Stability:

    • LO Frequency: 5150 MHz
    • Frequency Stability (-40 to +55°C): ±1.5 MHz
    • Phase Noise: @1 kHz ≤-75 dBc/Hz, @10 kHz ≤-80 dBc/Hz, @100 kHz ≤-100 dBc/Hz

    Power Supply:

    • DC Voltage (via IF Cable): 11-21 V
    • DC Current: ≤160 mA

    Elevate Your Choices with GARDINER!

    Looking for more options? We offer the full range of GARDINER satellite LNBs, including 25°K, 23°K, 20°K, 17°K, and 15°K models. Whether you need C-Band single/dual LO, dual-polarization single-output, KU-Band dual-polarization single-output, KU-Band dual LO single-output, multi-output, or single-polarization single-output LNBs, we have it all.

    Backed by official sales invoices and a guarantee of product quality, choose GARDINER for unparalleled satellite reception excellence. Elevate your viewing experience today!

    Add to cartDone
  • Sale!

    GARDINER 20K C band LNB 嘉顿 高频头 C波段高频头 降频器

    Original price was: ¥1,800.00.Current price is: ¥450.00.

    GARDINER 20K C band LNB 嘉顿 高频头 C波段高频头 降频器 RF Performance Parameters Parameter Specification Unit/Condition Operating Frequency Range 3.40 – 4.20 GHz System Noise Figure ≤20 K Input RF Signal Level Range -100 to -55 dBm Image Rejection ≥45 dBc Cross-Polarization Isolation ≥35 dB Output Frequency Range 950 – 1750 MHz Output Impedance 75 Ω…

    Add to cartDone
  • Sale!

    GARDINER 23K C band LNB 嘉顿 高频头 C波段高频头 降频器

    Original price was: ¥1,800.00.Current price is: ¥450.00.

    GARDINER 23K C band LNB 嘉顿 高频头 C波段高频头 降频器 RF Performance Parameters Parameter Specification Unit/Condition Operating Frequency Range 3.40 – 4.20 GHz System Noise Figure ≤23 K Input RF Signal Level Range -100 to -55 dBm Image Rejection ≥45 dBc Cross-Polarization Isolation ≥35 dB Output Frequency Range 950 – 1750 MHz Output Impedance 75 Ω…

    Add to cartDone
  • Sale!

    GARDINER 25K C band LNB 嘉顿 高频头 C波段高频头 降频器

    Original price was: ¥1,800.00.Current price is: ¥450.00.

    GARDINER 25K C band LNB 嘉顿 高频头 C波段高频头 降频器 RF Performance Parameters Parameter Specification Unit/Condition Operating Frequency Range 3.40 – 4.20 GHz System Noise Figure ≤25 K Input RF Signal Level Range -100 to -55 dBm Image Rejection ≥45 dBc Cross-Polarization Isolation ≥35 dB Output Frequency Range 950 – 1750 MHz Output Impedance 75 Ω…

    Add to cartDone
  • Sale!

    Gardiner C-Band LNB with 5G Filter. Model GKL-C1-5G. Made in USA

    Original price was: ¥1,800.00.Current price is: ¥880.00.

    Free Expedited Shipping for your purchases. Sale : Gardiner C-Band LNB with 5G Filter. Model GKL-C1-5G. Made in USA Brand : GARDINER Item Description : C BAND LNB WITH 5G FILTER Model No Or Type: GKL-C1-5G Serial No (if any): Country of Origin : UNK Item Condition : New Condition Description : Used. Tested OK…

    Add to cartDone
  • Sale!

    Gardiner GCF-3625BPF Filter C Band LNB

    Original price was: ¥3,280.00.Current price is: ¥1,800.00.

    Gardiner GCF-3625BPF Filtering Downconverter (Enhanced Version) GARDINER Gardiner (Note: “Gardiner” here is retained as the brand name consistency is assumed; if it’s a typo for “Garton” in the original Chinese context, it should be corrected accordingly in actual use, but based on the given text, “Gardiner” is used) Anti-5G Interference GCF3625BPF Filtering Downconverter (Enhanced Version),…

    Add to cartDone
  • Sale!

    GARDINER GCF3700 C Band LNB 高频头 降频器 抗5G干扰高频头

    Original price was: ¥1,800.00.Current price is: ¥480.00.

    GARDINER GCF3700 C Band LNB Gardiner (Note: As previously mentioned, if “Garton” is the intended original brand name in Chinese context, adjustments should be made accordingly. However, based on the given text, “GARDINER” is retained) Anti-5G Interference GCF3700BPF Downconverter, suitable for DVB digital television broadcasting, VSAT broadband communications, military satellite communication systems, securities communications, and…

    Add to cartDone

  • GARDINER GCF3800BPF C band LNB 抗5G干扰高频头 降频器 低噪声放大器

    GARDINER GCF3800BPF C band LNB 抗5G干扰高频头 降频器

    Read moreDone
  • Sale!

    GCF-17k-BPF GARDINER C波段抗5G干扰高频头 抗5G干扰嘉顿高频头

    Original price was: ¥2,800.00.Current price is: ¥1,100.00.

    Name: C-band 5G Downconverter LNB (Low Noise Block downconverter for frequency conversion) Model: GCF-17k-BPF Technical Parameters: Input Frequency (GHz): 3.7~4.2 GHz, Output Frequency (MHz): 950~1450 MHz Local Oscillator Frequency (LO): 5.15 GHz Gain (GAIN): 65 dB (Typical) Noise Figure (NOISE): 17K Output Connector: 75 Ohms 5G Signal Rejection: >40 dB @3.6 GHz >50 dB @3.5/3.4…

    Add to cartDone
